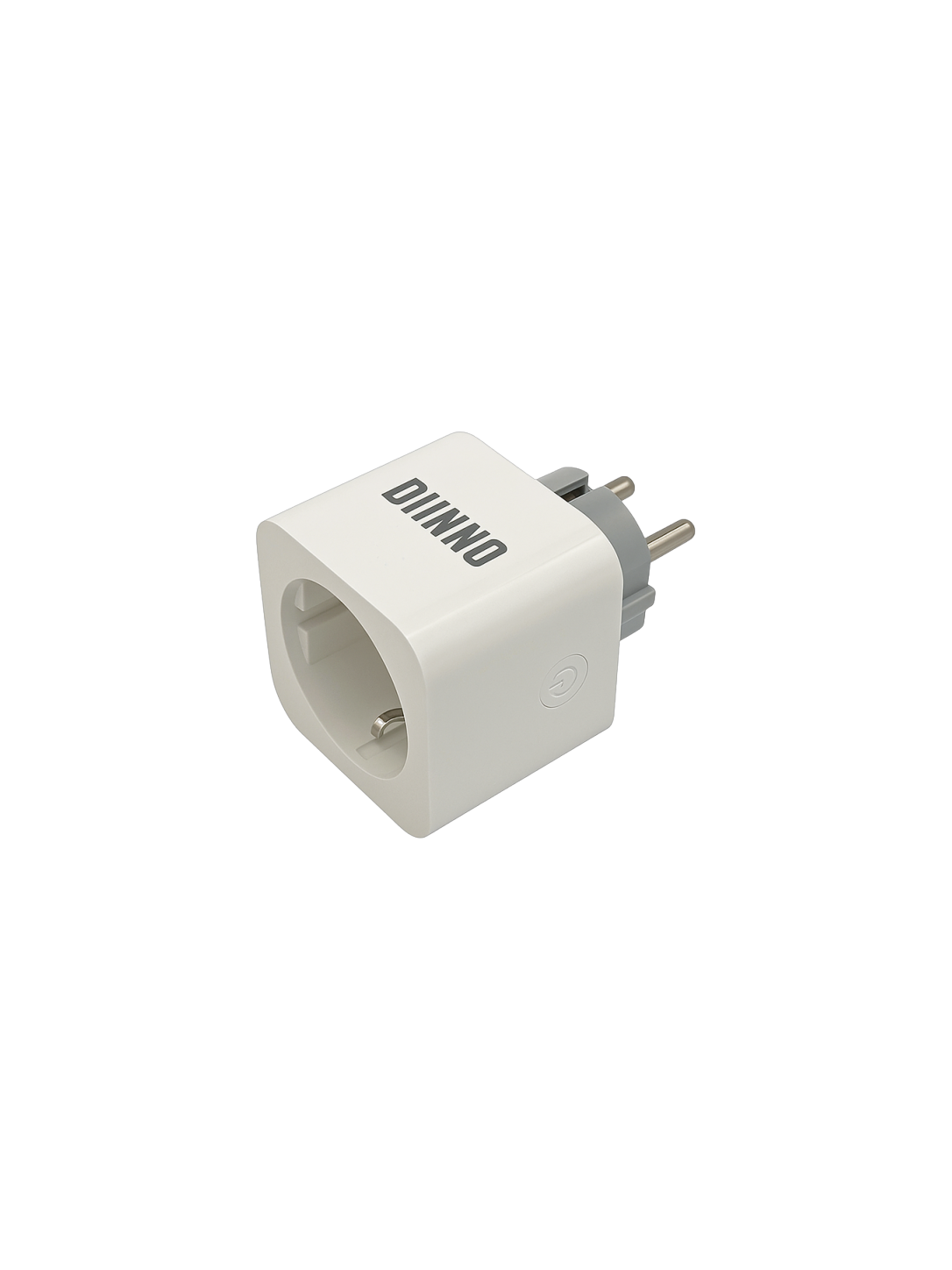

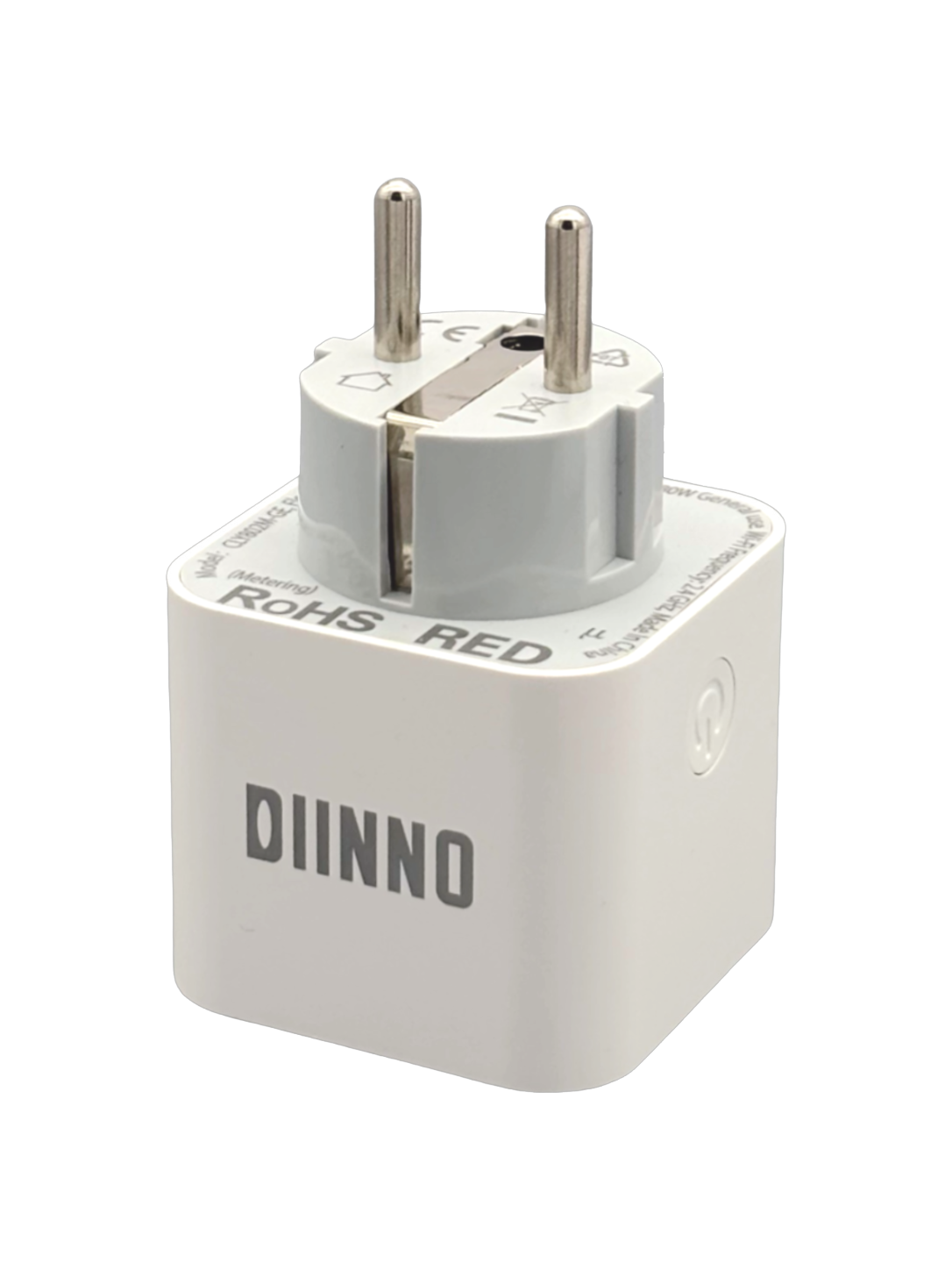

Smart plug CLY802M-GE
Schuko plug-in adapter with Wi-Fi – switch devices and measure consumption via app
The CLY802M-GE smart plug makes any Schuko socket remotely controllable: connected devices are switched via the DIINNO life App or a voice assistant – with schedules, scenes and countdown, without an additional hub.
The integrated energy metering shows power and consumption in real time and evaluates consumption by day, month and year. With 16 A / 3680 W, it is also suitable for high-power loads.
Request a quotePlaced on the EU market by: DIINNO GmbH, Brunsbütteler Damm 93, 13581 Berlin, Germany
We sell exclusively to businesses (entrepreneurs within the meaning of Section 14 of the German Civil Code, BGB), legal entities under public law and special funds under public law. No sales to consumers.
Product selection
Select the details and click “Request a quote” – your email program opens with your selection.
Your email program opens with your selection – you can review and add to the request before sending.
Functions
Features
- Switching via app, voice assistant (Amazon Alexa, Google Assistant) or button on the device – with LED status indicator
- Schedules, countdown and scenes (e.g. based on sunrise/sunset or depending on other devices)
- Energy metering: voltage, current, power and consumption (kWh) in real time – evaluation by day, month, year
- Up to 16 A / 3680 W – also for fan heaters, washing machines or workshop equipment
- Wi-Fi 2.4 GHz, no additional hub required
- Schuko with child protection (shutters), type-tested to IEC 60884-1 / -2-5
- Compact housing – adjacent sockets remain free
Technical data
- Rating
- 230 V~ (220–240 V), 50/60 Hz, 16 A, max. 3680 W
- Radio
- Wi-Fi 2.4 GHz (IEEE 802.11 b/g/n)
- App
- DIINNO life (Android / iOS)
- Connection
- Schuko 2P+E (type F / CEE 7/4), plug + socket
Technical data
Technical data
- Type
- CLY802M-GE (GTIN 4262443910049)
- Rated voltage
- 230 V~ (operation 220–240 V)
- Mains frequency
- 50/60 Hz
- Rated current
- 16 A
- Max. connected load
- 3680 W (resistive load)
- Switching element
- Relay (normally open)
- Energy metering
- Voltage, current, active power, energy consumption (kWh)
- Radio standard
- Wi-Fi 2.4 GHz, IEEE 802.11 b/g/n
- Frequency range
- 2400–2483.5 MHz
- Control
- DIINNO life App, Amazon Alexa, Google Assistant, button on the device
- Plug connection
- Schuko 2P+E (type F / CEE 7/4), plug + socket
- Child protection
- yes (shutters / enhanced protection against contact)
- Degree of protection
- IP20 – dry indoor rooms
- Housing material
- Polycarbonate (PC), white
- Dimensions (W × D × H)
- 52 × 52 × 82 mm
- Weight
- 86 g
- Operating temperature
- −10 °C to +50 °C
- Packaging unit
- 120 pcs / carton (28.5 × 45 × 29 cm, 12.8 kg gross)
- Conformity
- CE · RED 2014/53/EU · RoHS 2011/65/EU + (EU) 2015/863
- Standards
- EN 300 328 · EN 301 489-1/-17 · EN 18031-1 · EN IEC 55014-1/-2 · IEC 60884-1 / -2-5 · EN IEC 63000
- Test laboratory
- TÜV Rheinland / CCIC (type test CN234ZZV, RoHS 180211581a)
- Related models
- CLY803M-FR (FR plug) · CLY804M-UK (UK plug) – on request
Data use
Pre-contractual information pursuant to Art. 3 Data Act (Regulation (EU) 2023/2854) – full details in the transparency statement under “Documents”.
Data holder
DIINNO GmbH, Berlin – contact for data questions: info@diinno.de
Data collected
Switching state, timer/countdown settings, network parameters, connection status, device configuration and measured values (voltage, current, power, energy consumption).
Generation and volume
Event-driven on switching or status change – no continuous transmission. Approx. 168 KB per day and device.
Storage location and period
For users from the EU in the data centre in Frankfurt am Main. Usage logs are deleted automatically after 7 days; configuration data are kept until the device is unbound or the account is deleted.
Data export
DIINNO life App → “Ich” (Me) → “Einstellungen” (Settings) → “Verwaltung der Datenschutzrichtlinien” (privacy policy management) → “Gerätedaten exportieren” (export device data). The data arrive by email as a ZIP archive containing an Excel file.
Data deletion
Unbind the device in the app and select “historische Gerätedaten löschen” (delete historical device data) – or delete the app account.
Documents
Declarations open directly in your browser and can be saved if required.
- EU declaration of conformity (RED) CLY802M-GE (German) Open
- Data Act transparency statement CLY802M-GE (German) Open
- Datasheet CLY802M-GE in preparation – all values under “Technical data” on request
- RoHS & REACH declaration on request
App
The plug is set up and operated with the free DIINNO life App – together with OKK-WiFi and the smart radiator thermostat in one interface.
